RSP Application Software
Software for Radar Signal Processing

The RSP Application Software is a radar signal processing software suite for acquiring and processing analog or digital radar video from radars produced by a number of manufacturers (Consilium, Furuno, Kelvin-Hughes, Navico, Raytheon, Terma, etc). It provides tools for radar video capturing and broadcasting, plot extraction and target tracking as well as radar control.

After the acquisition of the radar signal, the RSP preprocesses it in the digital domain: correlates pulse-to-pulse and applies FTC by a modified high pass filter. Both static and dynamic STC are applied next. After the STC processing, both pulse-to-pulse and scan-to-scan correlation is performed on the thresholded video.

The preprocessed video signal is then passed to the radar signal broadcast module and to the plot extraction module. The radar signal broadcast module employs a CFAR processor for filtering out target-like echoes from the radar signal. The filtered signal is then correlated scan-to-scan, compressed and sent to the network. Similarly, the plot extraction module extracts target-like echoes and forwards these to the target tracking module.

Finally, the target tracking module uses the extracted plots to build a consistent traffic picture of the whole surveillance area of the radar. It uses a state-of-the-art Interacting Multiple Models (IMM) kinematic filter with a nonlinear channel to accurately model the target movements encountered in the traffic of vessels.

The target tracking module supports asynchronous input from multiple radar sensors and can produce a combined output (track fusion).

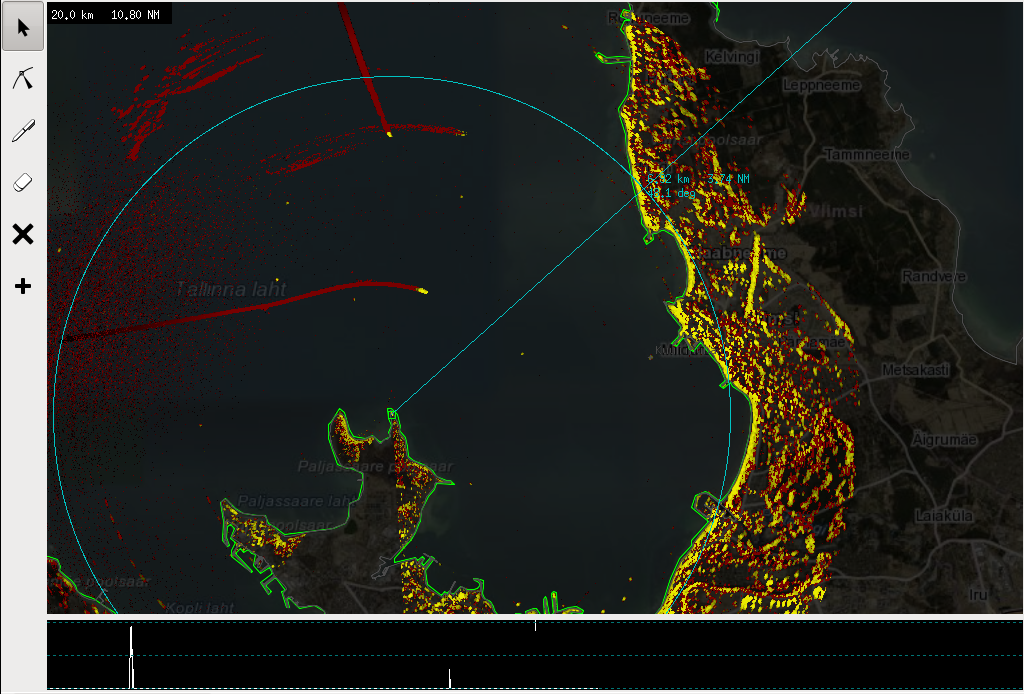

All the parameters of the RSP can be viewed and configured by a graphical user interface, using a provided service display application (PPI).

RSP Application Software can be run on a PC-compatible server or a RSP 347 Radar Signal Processing Unit (embedded version).


Download Brochure


The main features of the RSP Application Software are:

Application software modules
Application software modules
  • RSP – signal processor
  • TRACK – target tracker
  • PPI – plan position indicator / service display application
Pre-processing capabilities
FTC Modified high pass filter, with configurable time constant
Static STC Signal amplitude correction by a static ramp
Dynamic STC Signal amplitude correction by a dynamically updated clutter map
Broadcast capabilities
Filtering CA-CFAR (with a choice of LT, GT or AVG), OS-CFAR, Scan-to-Scan correlation
Bit depth 1-8, static or dynamic
Bandwidth 64 kBit/s … 5 Mbit/s, static or dynamic
Plot extraction capabilities
Filtering CA-CFAR (with a choice of LT, GT or AVG), OS-CFAR, Scan-to-Scan correlation
Plot criteria Size of the plot, both in azimuth and in distance; local density
Plot density Up to 6000 per scan
Tracking capabilities
Plot association algorithm NNCJPDA, MHT
Kinematic filter IMM, configurable, up to 6 channels
Kinematic filter channel types
  • low acceleration – Linear Kalman Filter
  • high acceleration – Linear Kalman Filter
  • coordinated turn – Extended Kalman Filter (EKF)
Maximum acceleration Configurable per channel, up to 20 m/s2
Maximum speed Configurable per channel, up to 120 m/s
Maximum turn rate Configurable per channel for EKF, up to 30 °/s
Maximum number of tracks Configurable, up to 2000 moving and up to 2000 stationary tracks
Multisensor support Asynchronous multisensor tracking capabilities (track fusion)
